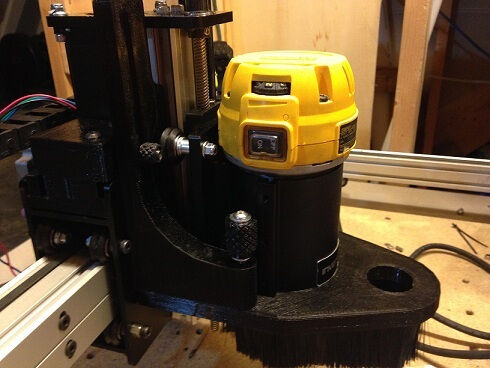

Here is a fully 3d Printable dust shoe based on NewBritts (Youtube:X-Carve Ultimate Dust Boot) design. I modified it to bring the vacuum attachment to the front
...Show more because the side causes loss of travel. Also added the screws to front so it is not dependent on magnets alone to secure it. Other modification where made to clean it up for 3d printing.
Some of the STL's are in the wrong origination, should be fixed when sliced. The bottom shoe should be printed with brush side up and with supports to print clean magnet pockets. All other parts require no supports if printed flat.
All hardware are M5 and the top base was tapped using a m5 tap
Magnets: d:12mm h:3mm
Brushes: https://www.mcmaster.com/#7900t5/=16g0r06
https://discuss.inventables.com/t/fully-3d-printed-newbritt-dust-shoe/30026
