Maker's Tool Works Fusematic

Fusematic #0Fusematic #1Fusematic #2

Properties

Build Volume 200 x 225 x 200 mm (8 x 9 x 8 in.)
Layer Resolution Low 300 micron (0.011 in.)
Layer Resolution High 100 micron (0.004 in.)
Nozzle Diameter 0.4 mm
Filament Diameter 1.75 mm

Documents

BrandMaker's Tool Works
Machine type 3D Printer
Technology FDM (Fused Deposition Modeling)
Materials PLA, Nylon, Polycarbonate (PC), Rubber-like (TPU), PETG
Websitehttp://makerstoolworks.com/fusematic-3d-printer/
Average Price $799.00

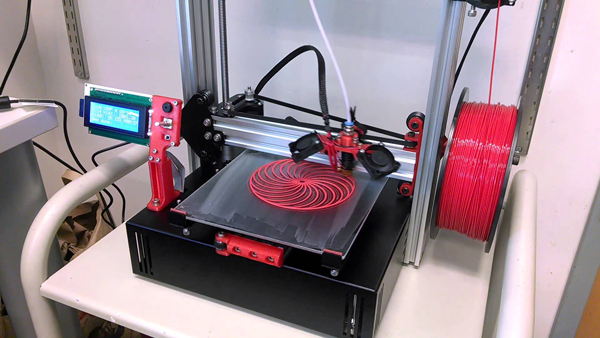

About Fusematic

The Fusematic 3D printer is smaller, and more affordable than the MendelMax 3, but made with the same commitment to quality that you have come to expect from MTW.

The Fusematic 3D printer was designed from the ground up for simplicity and reliability. A low part count, linear rails on all axes, and high-reliability electronics are just a few of the elements that set the Fusematic apart. And the electronics are all fully enclosed inside the base, making the Fusematic an excellent choice for schools and office environments.

Technical Specifications

  • Stylish black and silver components.
  • Build area: 200 x 225 x 200 mm, 8 x 9 x 8 inches
  • Full size of machine: 300 x 410 x 400 mm
  • Layer height: User-selectable, 100 – 300 microns
  • Print volume: 9000 cc, 576 cubic inches
  • PLA only with base version. PLA, ABS, and experimental materials like nylon and polycarbonate with the optional heated bed
  • Shipping weight: Approximately 22 lbs
  • Made in the USA with US and imported parts.
