Afinia 3D Afinia H480

Afinia H480 #0Afinia H480 #1Afinia H480 #2Afinia H480 #3

Properties

Build Volume 140 x 140 x 135 mm (5.5 x 5.5 x 5.3 in.)
Layer Resolution Low 400 micron (0.016 in.)
Layer Resolution High 150 micron (0.006 in.)

Documents

BrandAfinia 3D
Machine type 3D Printer
Technology FDM (Fused Deposition Modeling)
Materials ABS
Websitehttp://afinia.com/3d-printers/h480/
Average Price $799.00

About Afinia H480

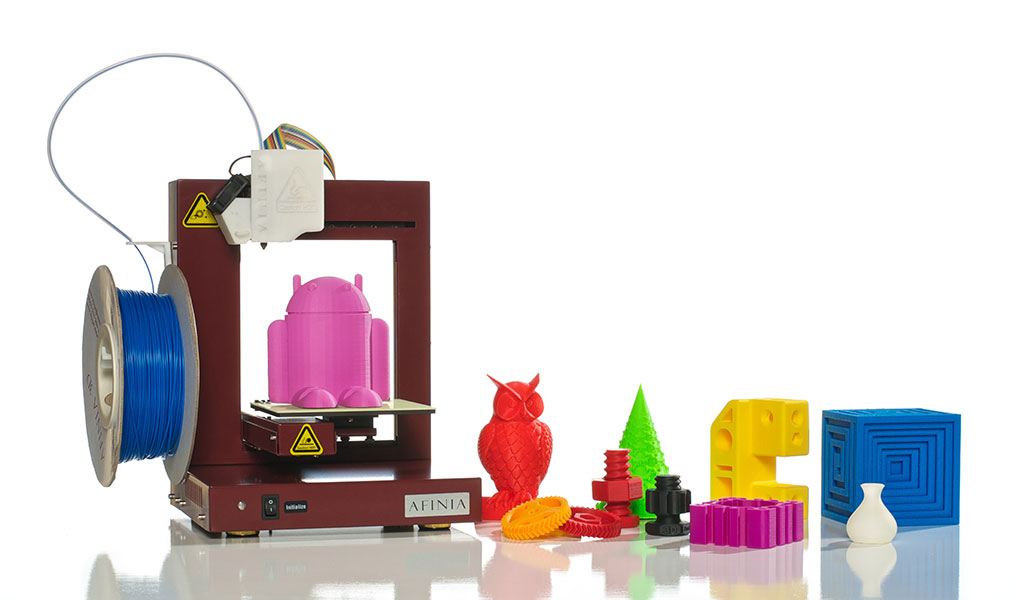

H480 3D Printer
Easy Out-of-Box Setup and use
Heated Platform
Auto Leveling Platform Calibration, and Nozzle Height Detection
Simple to install 3D Printer Software
Uses inexpensive ABS plastic filament: from $31.99/kg ($.02-.05/cm3)
Under 11lbs – 9.64 x 10.23 x 13.78″ (245 x 260 x 350 mm) footprint
Printing envelope over 5″ cubed
Free lifetime tech support

Included:

  • The Afinia H-Series 3D Printer
  • Easy-to-use 3D Printer Software
  • 3 Perf Boards for the platform
  • Handling tools
  • Starter spool of 1.5 lbs of ABS plastic

Out-of-the-Box 3D Printing

The Afinia H-Series 3D Printer provides a true “Out-of-the-Box 3D Printing Experience” as the 3D Printer comes fully assembled with easy to install software for both the PC and Mac. The Afinia H-Series 3D Printer can prototype a part or model that is up to 5 inches cubed in dimensions. The output is accurate to within .15mm (6 thousandths of an inch), and has 30% of the strength of injection molded parts.

Automatic Leveling

The auto-leveling feature is used to compensate for a warped or uneven print surface. It is not designed to take the place of manually leveling the print platform. The Platform Calibration Probe attaches magnetically to the extruder head and connects to the printer via a data cable. The probe measures the height of the build platform at nine different points, and takes a little over 2 minutes to complete the calibration.

Nozzle Height Detection

The nozzle detection feature measures the nozzle height to ensure that it is the correct distance from the printing surface prior to printing. This process takes about 20 seconds to complete. Using the nozzle height detection feature is more accurate than setting the nozzle height manually; and helps models adhere securely to print surface during printing

Easy to Use, Powerful Software

The 3D Printer Software features an easy-to-use interface for laying out, orienting, duplicating, and scaling parts. Simply use the included utility to calibrate the printhead height, and within minutes you are printing. It easily imports STL files, and the output can be customized in terms of the amount of support material and “raft” (base support) printed. Breakaway support material is simple to remove, and tools for aiding the breakaway are included. Design files for 3D printing can be created using online software, professional software such as SolidWorks™, or by downloading from the extensive online 3D printer community for free.

3D Printer Plastic Filament

The Afinia H-Series 3D printer uses inexpensive, high-quality plastic filament for 3D printing. Afinia offers an array of plastic filament colors including: natural, black, red, blue, yellow and green.

The portable Afinia H-Series 3D Printer is just under 11lbs, making it easy to transport. It can also be operated in standalone mode. Once the file is downloaded to the device, the USB connection between the 3D printer and computer can be disconnected – even while printing.
