ELEGOO Saturn

Saturn #0

Properties

Build Volume 192 x 120 x 200 mm
Layer Resolution Low 150 microns
Layer Resolution High 10 microns
Print Speed Max. 40 mm/h
BrandELEGOO
Machine type 3D Printer
Technology DUP (LCD-based Direct UV Printing)
Materials Resin, Castable Resin, Tough Resin, Flexible Resin, High Temp Resin
Websitehttps://www.elegoo.com/collections/saturn-series/products/elegoo-saturn-4k-mono-lcd-3d-printer
Average Price $480.00

About Saturn

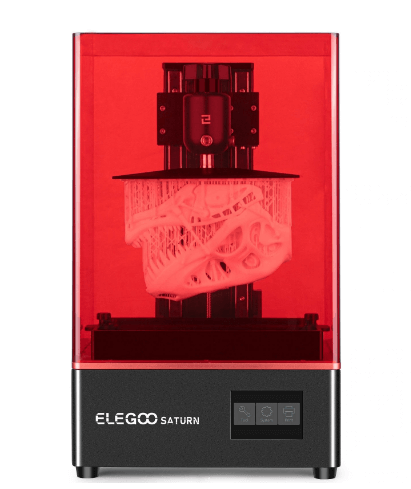

Saturn is a desktop resin 3D printer from ELEGOO with a good build volume of 192 x 120 x 200 mm. The machine uses a matrix of 54 LEDs and a 4K monochrome screen for masking. It prints as fast as 40 mm per hour and delivers good quality.

Features:

  • 4K monochrome LCD screen;
  • Matrix light source with 54 LEDs;
  • Double Z-axis;
  • Easy to assemble;
  • 3.5” touchscreen;
  • USB connectivity.
Check price on Affiliate

ELEGOO is a manufacturer of affordable printers with some of its machines being fan favorite for miniatures, jewelry and dentistry. With a build volume of 192 x 120 x 200 mm Saturn sits among mid-size printers, while these dimensions are versatile and provide a huge room for creativity.

Design and Hardware

Saturn looks pretty standard design-wise: hardware is located at the bottom, and the printing area itself sits under a see-through plastic cover. Saturn itself is a bigger version of ELEGOO’s popular Mars series.

In order to keep the quality and the larger volume, Saturn has a matrix of 54 LEDs and uses a 4K screen for masking. Like other manufacturers of resin printers, ELEGOO also moved to using monochrome screens that allow better transmission of UV light.

A nice touch is that VAT bath for resin sits on 4 screws that go below the frame. They act as legs when the VAT is removed, which makes it easier to change resin without damaging the film. The VAT also has handles for easier removal – a small but pleasant detail.

Z-axis and the overall structure of Saturn is sturdy despite the machine doesn’t weight all that much.

Software

ELEGOO takes a smart route but not pushing an outdated slicer. Saturn uses loved by many fans Chitubox with lots of useful features and capabilities.

Reviews 4.6 6 reviews

Print Quality
Reliability
Ease Of Use
Failure Rate
Running Expenses
Software
Build Quality
Value
Customer Service
Community
The Elegoo Saturn printer provided quality prints at a faster rate than it's predecessors. The details it provides are astounding for 28mm scale items.
Nov 9, 2021
This is the best printer ive had the chance to work with
Jul 24, 2021
5 out of 5 for me. Quality is amazing, the detail is superb.
Jul 21, 2021
Good printer for one off jobs as the reliability can be inconsistent.
Jun 17, 2021
One of the highest rated printers. For the price it is a great deal if you can find one.
Mar 23, 2021
Easy way to print models.
you can easily lesen how to print and Set Support by your own or by Community and Youtube tutorials.
I did the most on my own and learned a lot.
